Which RX480E Model Should I Choose?
Most RX480E mistakes start before wiring.
They start when a project is described only as:
> I need an RX480E.
That is not enough yet.
Before choosing a model, first write down what should happen after the remote button is pressed.
A useful way to think is this signal path:
1. Remote button
2. RF frequency
3. Encoding / decoding
4. RX480E
5. Output pin
6. Your circuit
7. Real device
RX480E is not the whole control system. It is the part that helps turn a wireless remote signal into output pins your circuit can read.
Once this path is clear, the model choice becomes much easier.
## Quick answer
| Your project needs... | Start with... | The failure to avoid |
| --- | --- | --- |
| One output signal | RX480E-1A | Buying a 4-channel module when one output is enough. |
| Four output signals at 433 MHz | RX480E-4A or RX480E-4C | Ignoring which remote button value appears on which output pin. |
| 868 MHz | RX480E-868 | Buying a 433 MHz receiver for an 868 MHz transmitter. |
| Receive / transmit module behavior | RX480E-868 | Choosing a receiver-only 433 MHz model when your project needs transceiver behavior. |
| Direct control of a DC motor, solenoid lock, water pump, high-current relay coil, or mains-powered AC device | Not RX480E alone | RX480E outputs signal-level pins. It is not a high-current load controller. |
## Shortest answer
- If you need one 433 MHz output, start with RX480E-1A.
- If you need four 433 MHz outputs, start with RX480E-4A or RX480E-4C.
- If your project uses 868 MHz or needs receive / transmit behavior, start with RX480E-868.
- If your project needs to drive a real load directly, do not start with RX480E alone.
## Step 1: Start with frequency
Frequency is the first hard gate: a 433 MHz receiver will not pair with an 868 MHz transmitter.
Choose a 433 MHz model if your remote or transmitter is 433 MHz:
- RX480E-1A
- RX480E-4A
- RX480E-4C
Choose RX480E-868 if your project uses 868 MHz, or if you specifically need a module that can switch between receive mode and transmit mode.
If you use a third-party transmitter, frequency is only the first check. Encoding must also be compatible.
## Step 2: Choose by output count
After frequency, look at the number of output signals.
### If you need one output, start with RX480E-1A
RX480E-1A is for simple one-output projects.
Choose it if your signal path looks like this:
1. One remote button
2. 433 MHz signal
3. RX480E-1A
4. One OUT pin
5. LED, MCU input, or simple signal test
Key points:
| Item | RX480E-1A |
| --- | --- |
| Frequency | 433.92 MHz |
| Input voltage | DC 2.0 V-5.0 V |
| Output | One OUT pin |
| Control input | External KEY pin |
The failure to avoid:
Do not choose RX480E-1A if your project needs four independent output pins. It only gives you one output signal.
### If you need four outputs, compare RX480E-4A and RX480E-4C

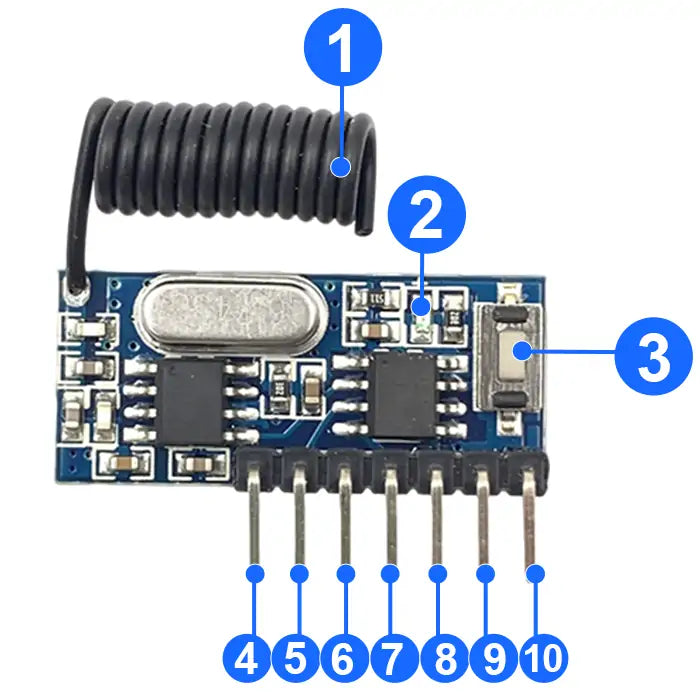

RX480E-4A and RX480E-4C are both 4-channel 433 MHz receiver / decoder modules.
Choose this type if your signal path looks like this:
1. Remote button value
2. 433 MHz signal
3. RX480E-4A or RX480E-4C
4. D0, D1, D2, or D3 output
5. Arduino, MCU, test LEDs, or driver circuit
Key points:
| Item | RX480E-4A / RX480E-4C |
| --- | --- |
| Frequency | 433.92 MHz |
| Input voltage | DC 3 V-5 V |
| Output pins | D0, D1, D2, D3 |
| Other pin | VT |
| Common modes | Momentary, toggle, latching, reset |
The failure to avoid:
Do not treat RX480E-4A and RX480E-4C as identical if your wiring or code expects a specific output order. They are both 4-channel modules, but their button-value-to-pin mapping is different.
## Step 3: Check the RX480E-4A / RX480E-4C mapping
This is the part many projects should check before buying.
| Remote button value | RX480E-4A output pin | RX480E-4C output pin |
| --- | --- | --- |
| 8 (1000) | D3 | D0 |
| 4 (0100) | D2 | D1 |
| 2 (0010) | D1 | D2 |
| 1 (0001) | D0 | D3 |
Use this table as the decision point. If your wiring or code expects value 8 on D3, choose RX480E-4A. If it expects value 8 on D0, choose RX480E-4C.
The risk is not that one version is better. The risk is building your wiring or firmware around the wrong output pin.
## Step 4: Choose RX480E-868 for 868 MHz or transceiver behavior
RX480E-868 is different from the 433 MHz receiver-only models.
It is an 868 MHz RF wireless encoding and decoding transceiver module. It can work in receive mode or transmit mode.
A receive-mode signal path can look like this:
1. 868 MHz transmitter
2. RX480E-868 in receive mode
3. D0-D3 high-level outputs
4. Your circuit
A transmit-mode path can look like this:
1. Your input signal
2. D0-D3 low-level inputs
3. RX480E-868 in transmit mode
4. 868 MHz wireless signal
Key points:
| Item | RX480E-868 |
| --- | --- |
| Frequency | 868 MHz |
| Input voltage | DC 5 V-24 V |
| Pins | D0, D1, D2, D3 |
| Receive mode | D0-D3 work as high-level signal outputs |
| Transmit mode | D0-D3 work as low-level signal inputs |
| Mode conversion | Receive / transmit mode can be switched by the learning button |
| Common modes | Momentary, toggle, latching, reset |
The failure to avoid:
Do not choose RX480E-868 only because it sounds newer. Choose it because your frequency, transmitter, receiver, or project architecture needs 868 MHz or receive / transmit behavior.
## Step 5: Know what RX480E does not do by itself
This is important.
RX480E output pins are signal outputs. They are not meant to directly drive high-current loads.
Do not connect these directly to RX480E output pins:
- DC motor
- solenoid lock
- water pump
- high-current relay coil
- mains-powered AC device
If your real project controls a load, the safer signal path is usually:
1. RX480E output pin
2. Driver, transistor, relay module, or MCU input
3. Real load
The failure to avoid:
Do not judge the module by connecting it directly to the final device first. If the load needs more current than the output pin can provide, the project can fail even when RX480E itself is working.
## First bench test after choosing a model
After choosing the model, do not connect it to the real project first.
These pins can be used for a basic LED test, and this kind of basic LED test can be done without a current-limiting resistor. But do not treat them as general-purpose load-driving outputs.
Prove the signal path on the bench:
1. Power the module with the correct voltage.
2. Pair it with a compatible transmitter.
3. Press the remote button.
4. Measure the output pin with an LED or multimeter.
5. Confirm the working mode: momentary, toggle, or latching.
6. Only then connect it to your relay module, MCU, driver circuit, or real project.
This small test can prevent many false conclusions.
If the output pin changes during the bench test, RX480E is doing its part.
If the output pin does not change, check the signal path one section at a time: frequency, transmitter compatibility, power, pairing, working mode, and output measurement.
## Final checklist before choosing
Use this checklist in the same order as the article:
| Step | Decision to make |
| --- | --- |
| 1 | What should happen after the remote button is pressed? |
| 2 | Does your transmitter use 433 MHz or 868 MHz? |
| 3 | Do you need one output or four outputs? |
| 4 | For RX480E-4A / RX480E-4C, should value 8 appear on D3 or D0? |
| 5 | What circuit will read or drive the RX480E output pin first? |
If you can answer these five points, you are ready to choose the model and move to the first bench test.
