How to Use RX480E in Your Project

A remote button sends a wireless signal.
RX480E turns that signal into an output pin your circuit can read.
The output pin is a signal output, not a power output.
Use a driver, relay module, or MCU when your project needs to control a motor, pump, lock, or other real load.

Guides

  • RX480E-4 Module Guide

    RX480E-4 Module Guide

    Do you need wireless control for four devices at once? Press one button, one device responds. Press another, a different one responds. RX480E-4 is a 433 MHz wireless receiver module...

    RX480E-4 Module Guide

    Do you need wireless control for four devices at once? Press one button, one device responds. Press another, a different one responds. RX480E-4 is a 433 MHz wireless receiver module...

  • RX480E-1A Module Guide

    RX480E-1A Module Guide

    Do you need wireless control for one device? Press a remote button, and that one device responds. RX480E-1A is a 433 MHz wireless receiver module with one signal output pin....

    RX480E-1A Module Guide

    Do you need wireless control for one device? Press a remote button, and that one device responds. RX480E-1A is a 433 MHz wireless receiver module with one signal output pin....

1 4

Choose a Module for Your Project

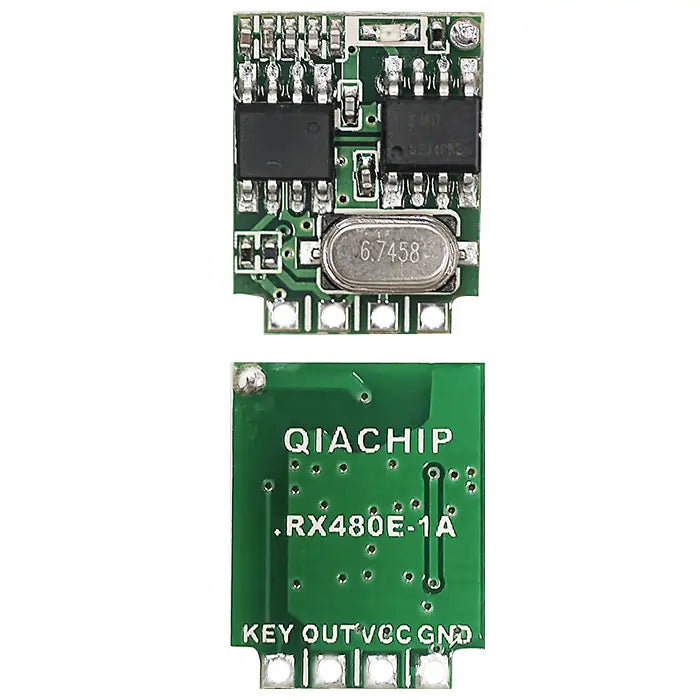

  • RX480E-1A

    One 433 MHz wireless signal to one output pin.

    A simple starting point for LED tests, MCU inputs, and single-output control projects.

    View RX480E-1A

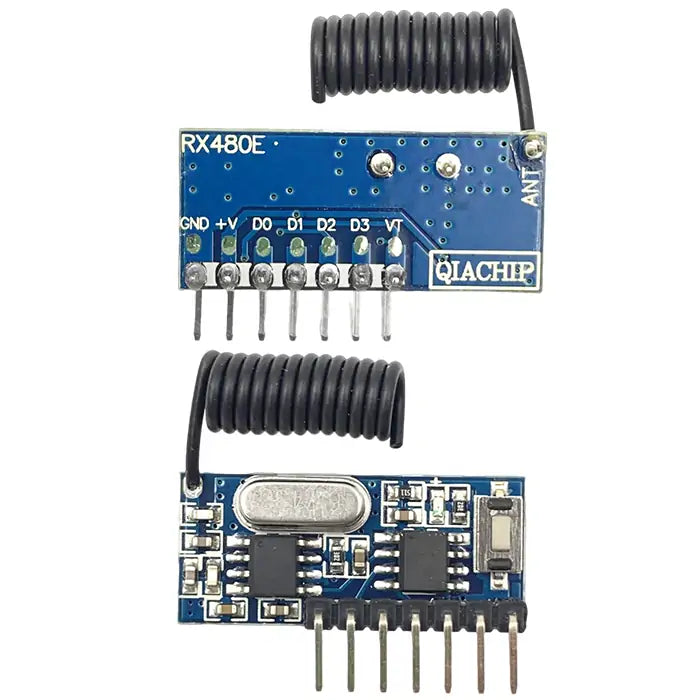

  • RX480E-4

    Dual-chip version of the receiver module with decoding, four 433 MHz output pins for projects requiring several remote controlled signals.

    View RX480E-4

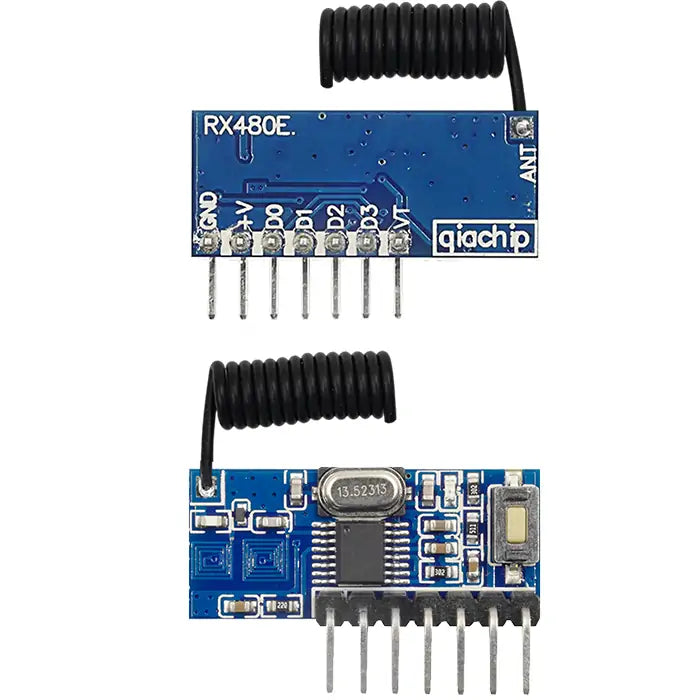

  • RX480E-4C

    Single-chip version of the receiver module with decoding, four 433 MHz output pins for projects requiring several remotecontrolled signals.

    View RX480E-4C

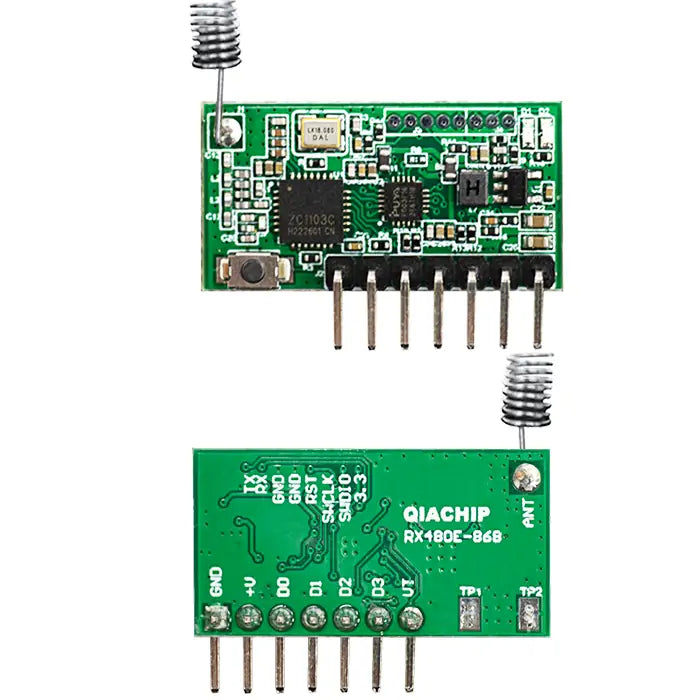

  • RX480E-868

    Four 868 MHz output pins for projects requiring several remote controlled signals. The module integrates transmit and receive modes

    View RX480E-868

Not Sure Which Model Fits Your Project

Start with your RF frequency, output count, and the pin mapping your wiring or code expects.

Choose Your RX480E Model
