READ THIS:

The Receiver is encoded with EV1527 and are ONLY compatible with Transmitter encoded with EV1527

Package Included:

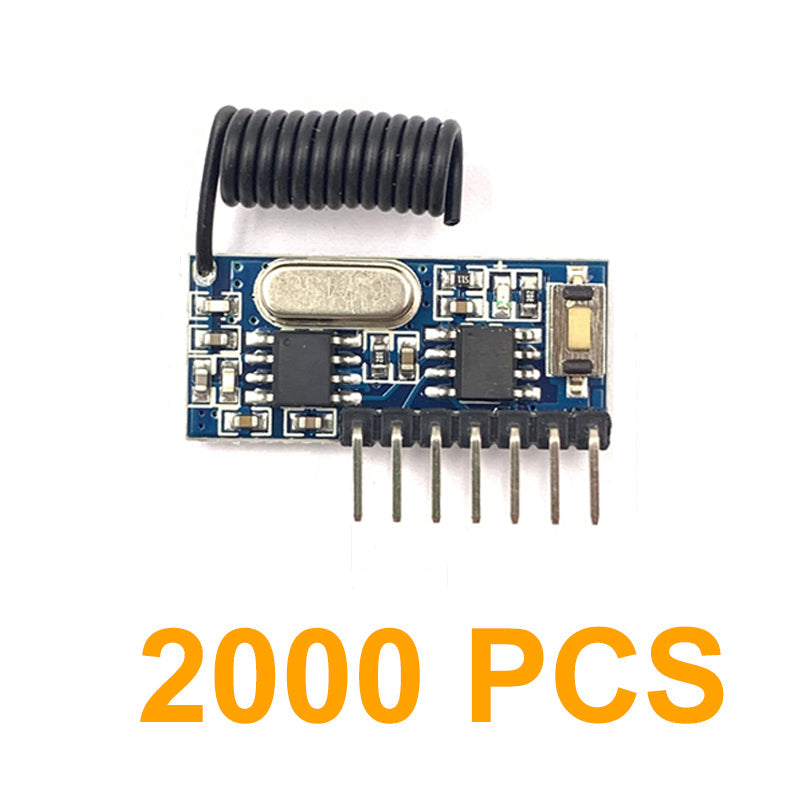

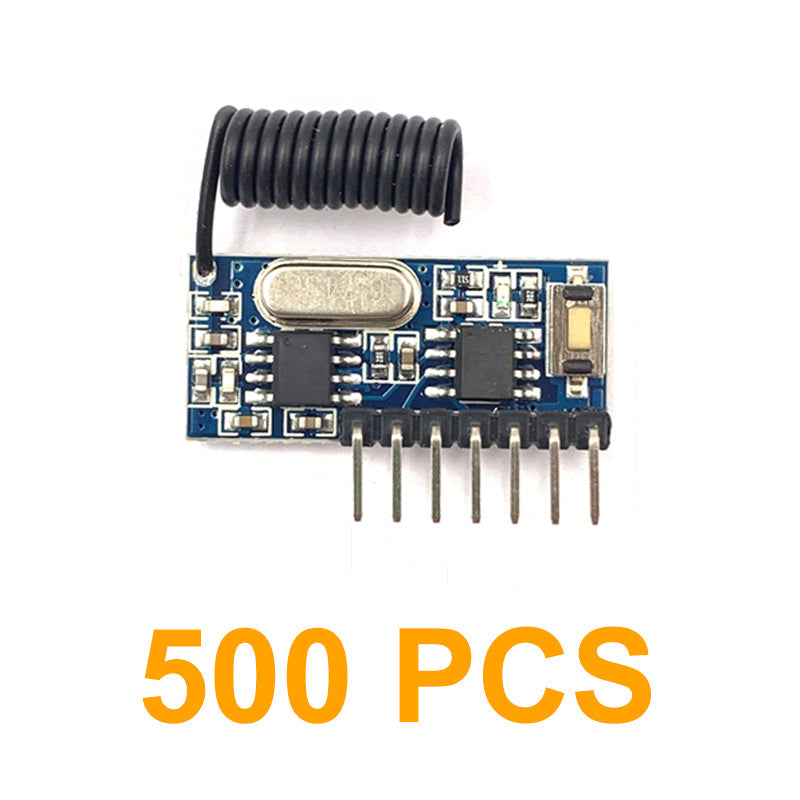

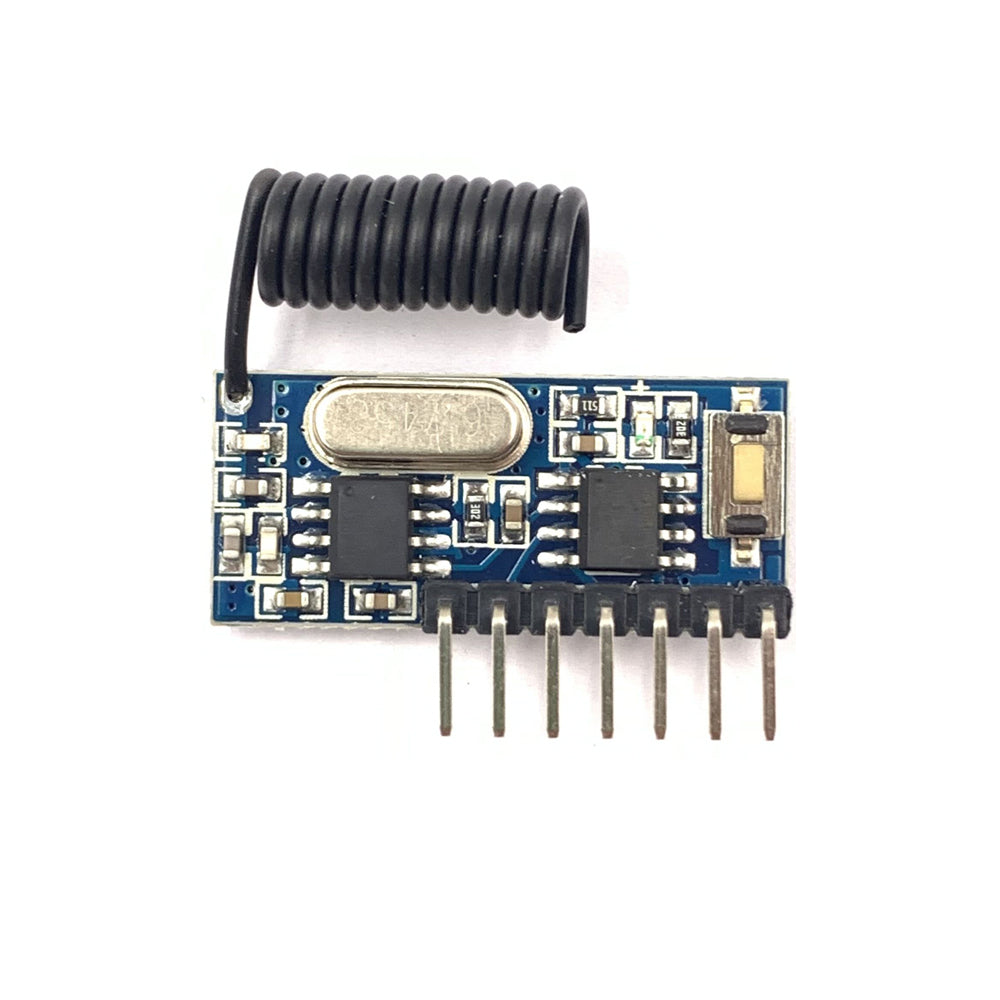

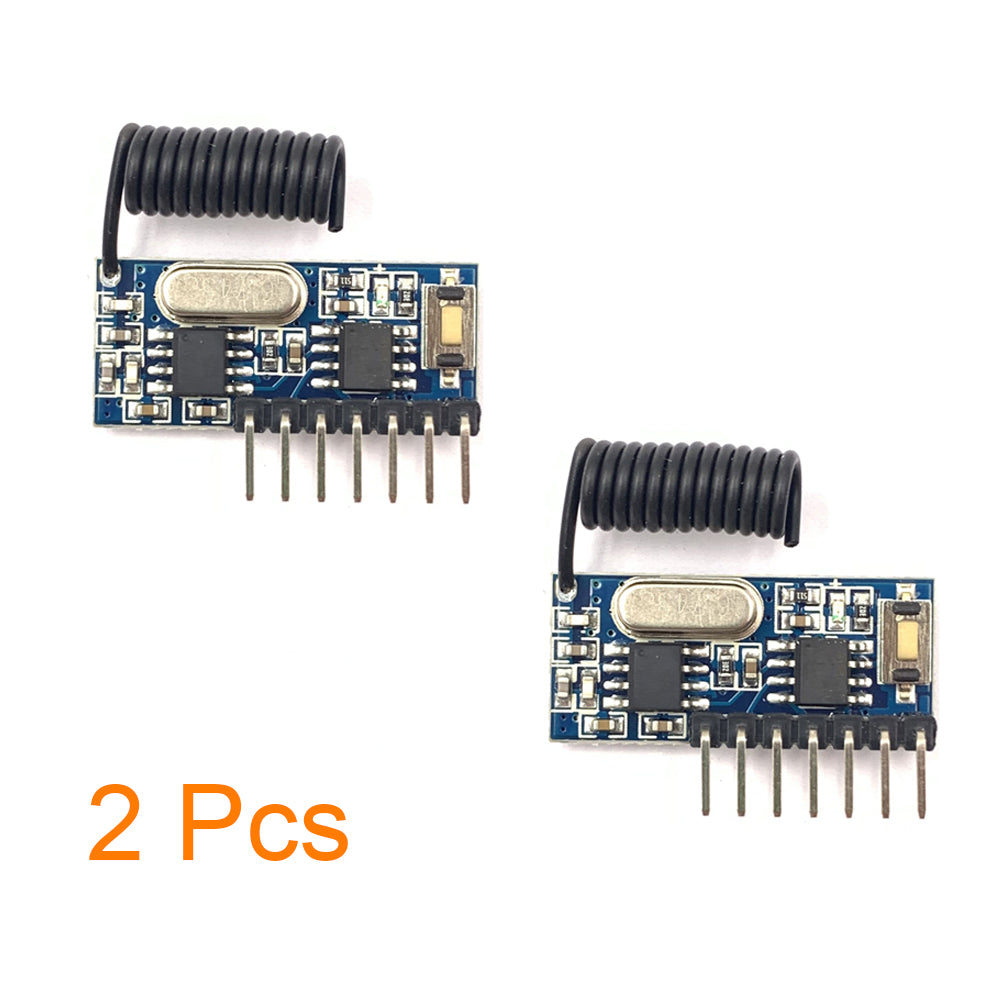

Receiver module (RX480E-4) * 2pcs

This package does not include the antenna.

Qiachip RX480E-4 Specifications:

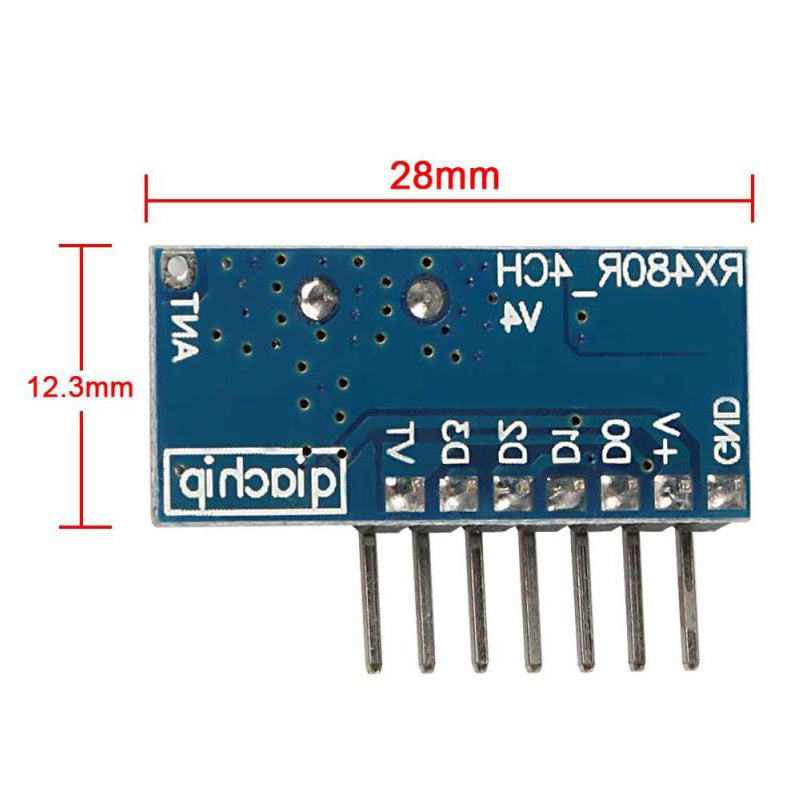

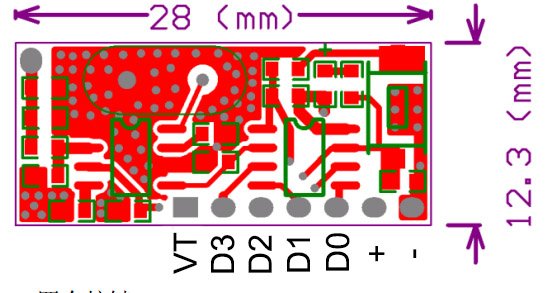

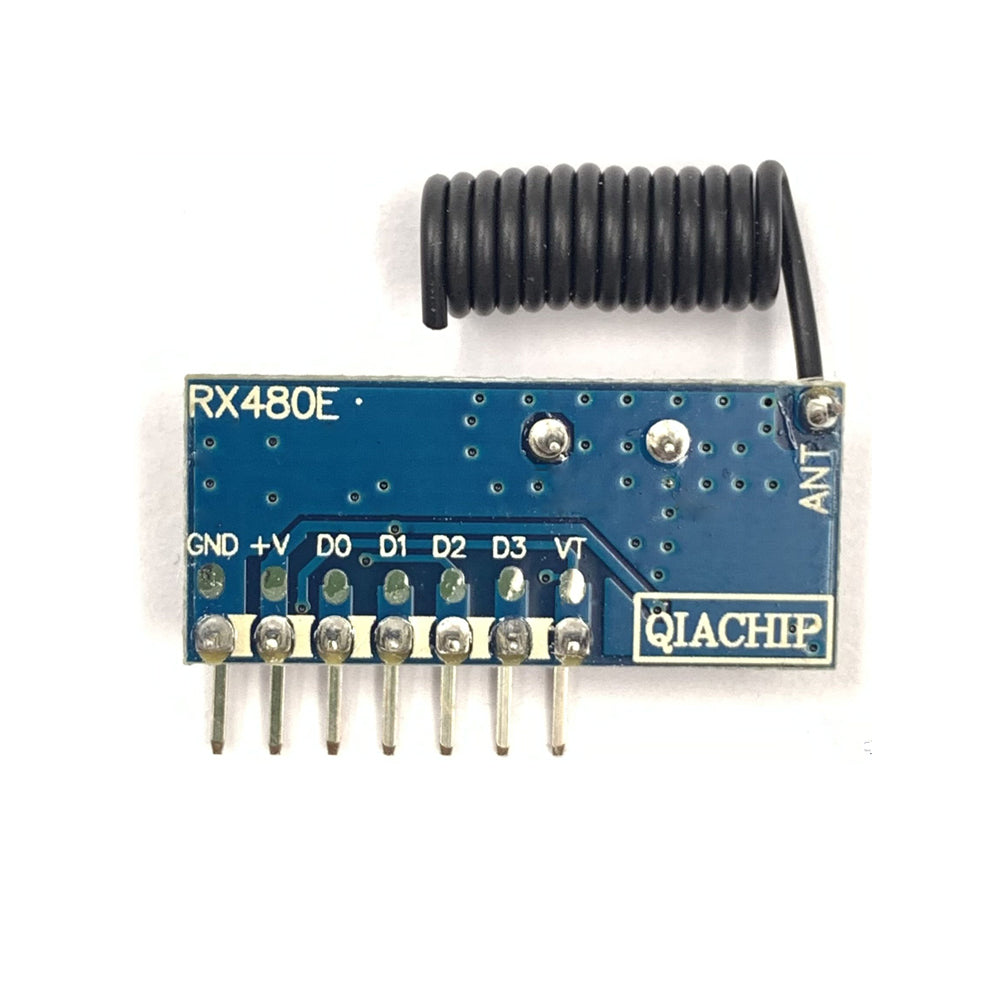

[Receiver module ] Product Model: RX480E-4

Working Voltage : DC3.3~5V

Quiescent Current : ≤5mA

Output current : 10 mA

Working Frequency: 433MHz( Others can be customized )

Receive Sensitivity: -108dB

Receive Distance: 15 meters above

Frequency band: ±0.2MHz

Working Temperature : -25~75

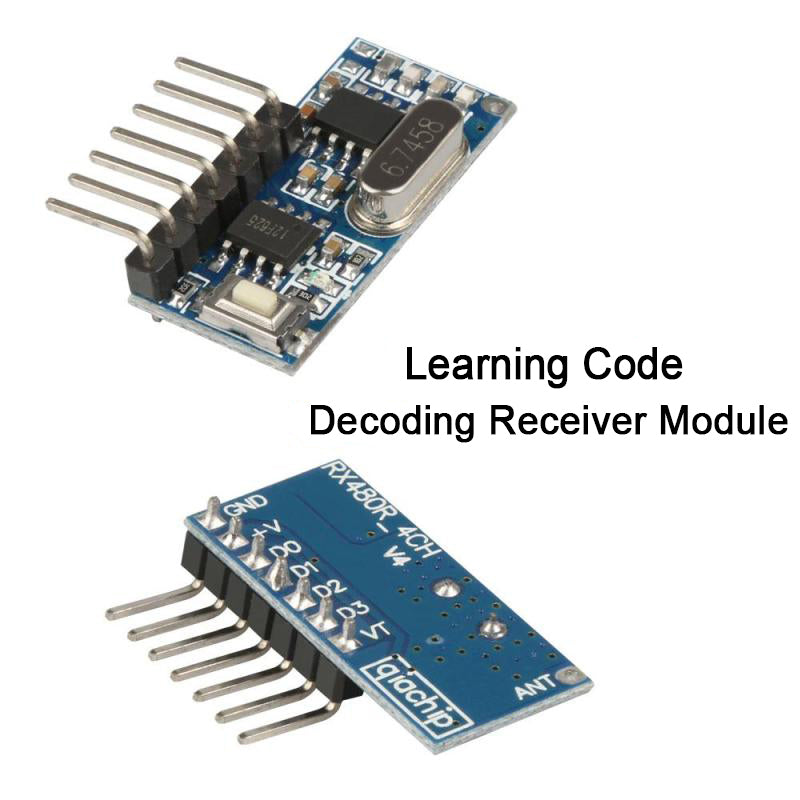

Pairing Instructions:

Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
Learning remote code: press learning key once, twice or three times (see below).

LED turns on: learning mode is active. Press any button of the remote control.
LED indicator flashes three times: learning successfully completed.
Test: after the above operation , the receiver board can be controlled by the remote control.

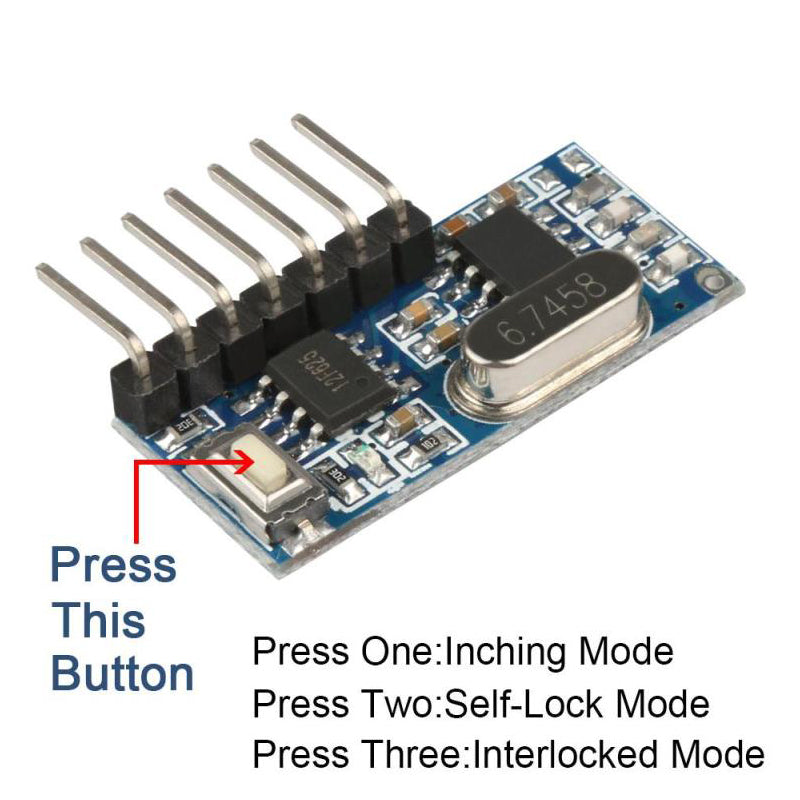

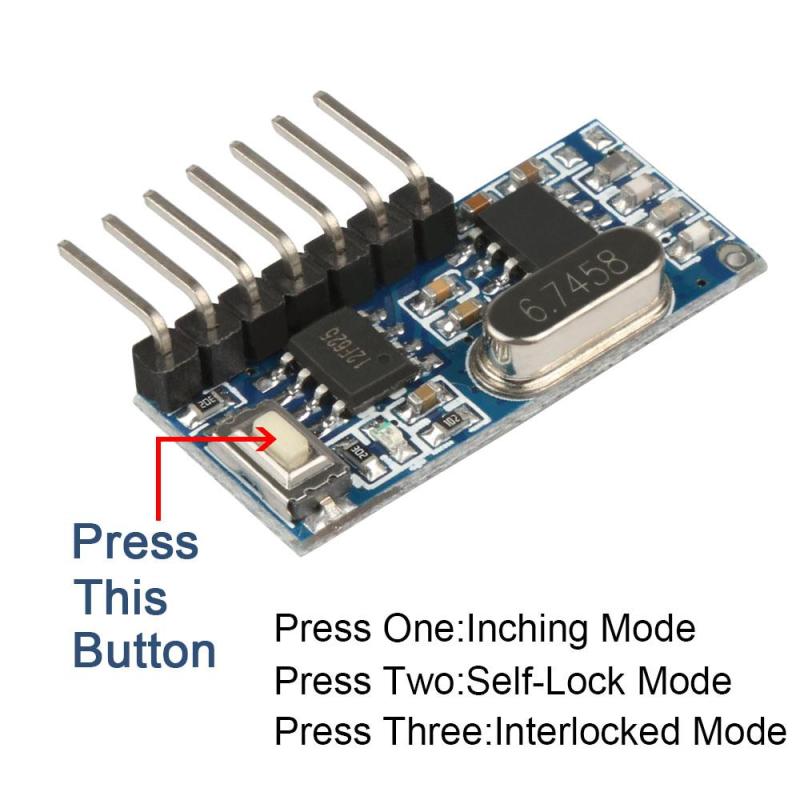

Functions:

Press once: Inching mode (Momentary Mode)
Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)
Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)
